ASUS has a wide ranges of VGA products. Introducing the new nVidia powered graphic card ASUS ENGTX295 TOP. This new and powerful VGA PCI Express card is featuring dual GPU to deliver more power and 3D realistic games and graphics. This VGA card was built using 55nm manufacturing technology and also equipped with 1792 MB memory.

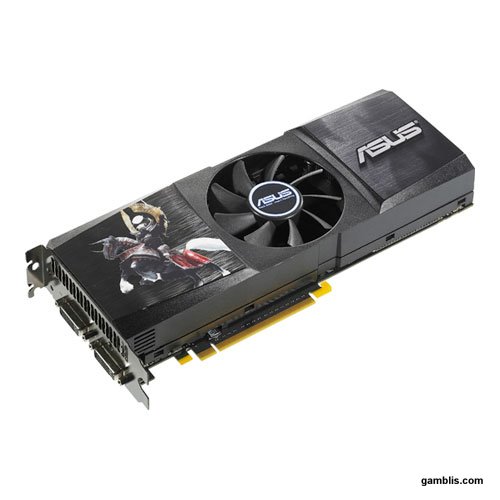

TOP in the name of this model says enough about this graphics card. This model is overclocked by manufacturer and came in characteristic package that isn’t full of additional accessories as we are used to. There was no additional software but then again the price of this model isn’t that high. Graphics card has referent cooling system which means that this card looks as any other GTX 285 with exception of ASUS sticker on it. Cooling system is efficient, silent and not too hot in regular conditions. Beneath that cooler is located GT200b GPU made in 55nm manufacturing process which resulted in lower thermal dissipation and power consumption. GPU has 240 Stream Processors, 80 Texturing Units and 32 ROPs. It supports the same technologies as all previous similar models but we will mention DirectX10.0, Shader Model 4.0 and OpenGL 2.1 support.
General Specifications:
| Graphics Engine | NVIDIA GeForce GTX 295 |
| Bus Standard | PCI Express 2.0 |
| Video Memory | DDR3 1792MB |
| Engine Clock | 604 MHz |
| Shader Clock | 1368 MHz |
| Memory Clock | 2100 MHz ( 1050 MHz DDR3 ) |
| RAMDAC | 400MHz |
| Memory Interface | 896-bit |
| CRT Max Resolution | 2048 x 1536 |
| DVI Max Resolution | 2560 x 1600 |
| D-Sub Output | Yes x 1 (via DVI to D-Sub adaptor x 1 ) |
| DVI Output | Yes x 2 (DVI-I) |
| HDMI Output | Yes x 1 (via DVI to HDMI adaptor x 1 ) |
| HDCP Support | Yes |
